Using the Jenkins Pipeline Stage with Spinnaker

You can launch Jenkins jobs to run Liquibase and perform database updates in a Spinnaker while using a Jenkins pipeline stage.

The following diagram shows the Jenkins pipeline stage calling a Jenkins job which executes Liquibase commands on a Jenkins subordinate.

Note: The procedure mentioned in this documentation has been built on top of the application created in the Jenkins article.

Setting up Spinnaker and the Jenkins pipeline stage

To configure Jenkins and Spinnaker, follow these steps:

Step 1: Make sure you set up Jenkins and Spinnaker.

Step 2: Configure a Jenkins master node using the API Token:

1. Go to your Jenkins instance and select Configure.

Note: If you are new to Jenkins, see Jenkins Documentation.

2. Enter a full name, description, and API Token that you want to add:

3. Select Save.

Step 3: Deploy package and deploy jobs pre-configured so that Spinnaker can run those jobs.

To deploy jobs, use examples of the Jenkinsfile provided later in this documentation. After creating your Jenkinsfile and starting to configure a build, specify mode as a Jenkinsfile and enter the path to this file. The following example shows the path to a Jenkinsfile pointing to the root of the repository.

Package operation

The package pipeline stage deploys changes to the DEV environment and produces a versioned artifact. The package job in Jenkins accepts three parameters – USERNAME, PASSWORD, and ENV:

The pseudo-code looks like this:

1. Perform pre-check to ensure all tooling is installed and obtain the needed information about each tool’s version
2. Check out a branch from a Git repository
3. Deploy code to DEV database
4. Create a versioned artifact

The following is an example of the Jenkinsfile to package Liquibase changesets:

#!/usr/bin/env groovy
// Packager declarative pipeline
//
pipeline {
  agent {
	node {
	  label 'datical'
	   customWorkspace "/var/lib/jenkins/workspace/LB_mongo/1.Package-${BUILD_NUMBER}/"
	}
  }

  environment {
	GITURL="git@github.com:datical-customersuccess"
	PROJ_REPO="LB_mongo"
	PATH="$PATH:/opt/liquibase/lb_4.00"
  }

  stages {
     stage ('Precheck') {
		steps {
		   sh '''
		      ls -alh
		      pwd
		      whoami
			  which git
			  git --version
			  liquibase --version
			  git config --global user.email "jenkins@datical.com"
			  git config --global user.name "jenkins"
		  '''
	 } // steps
 } // stage 'precheck'

 stage ('Checkout') {
   steps {
	 // checkout Liquibase project from Repo
	 checkout([
	     $class: 'GitSCM',
	     branches: [[name: '*/master']],
	     doGenerateSubmoduleConfigurations: false,
	     extensions: [
		   [$class: 'RelativeTargetDirectory', relativeTargetDir: "${PROJ_REPO}"],
		   [$class: 'LocalBranch', localBranch: 'master']],
		submoduleCfg: [],
		userRemoteConfigs: [[url: "${GITURL}/${PROJ_REPO}.git"]]
	  ])
	  } // steps for checkout stages
  } // stage 'checkout'

  stage ('Branches'){
	 steps {
	 sh '''
	   #{ set +x; } 2>/dev/null

	   cd ${PROJ_REPO}
	   echo "Current Directory:" `pwd`
	   git branch --set-upstream-to=origin/main main
	   git status

	 '''
	} // steps
  }   // Branches stage

  stage('Package SQL') {
	steps {
		     sh '''
		        #{ set +x; } 2>/dev/null

		        echo "==== Running PackageSQL (using Liquibase::update) ===="
		        cd ${PROJ_REPO}
		        liquibase --url=mongodb://localhost:27017/${ENV}    \
		        --username=${USERNAME}     \
		        --password=${PASSWORD}     \
		        --log-level=info            \
		        update
		      '''
	}   // steps ...
  }  // stage 'Package SQL'

  stage('Artifact') {
	steps {
	  sh '''
		 #{ set +x; } 2>/dev/null

		 echo
		 echo "==== Creating ${BUILD_NUMBER}.zip ===="
		 zip -q -r ${BUILD_NUMBER}.zip *
		 #mv *.zip ..

		 echo
		 echo "=====FINISHED===="
	  '''
		// upload artifacts to Artifactory
		script {
		    def server = Artifactory.server 'ArtifactoryServer'
			def uploadSpec = """{
			  "files": [
				{
				 "pattern": "*.zip",
				 "target": "${REPOSITORY_BASE}/${BRANCH}/database/",
				 "flat" : "false"
				}
			   ]
			  }"""
			  server.upload(uploadSpec)

		} // steps for Artifact
     } // stage artifact

   }   // stages
   post {
	 always {
		//archiveArtifacts "**/daticaldb.log, **/Reports/**, **/Logs/**, **/Snapshots/**"
		sh '''
		   ls -alh
		'''
		}
	  }
   }     // pipeline

Deploy operation

The deploy pipeline stage pulls down the specific artifact version and deploys it to a target database environment. The deploy job in Jenkins accepts four parameters – USERNAME, PASSWORD, ENV, and ARTIFACT_VERSION:

The pseudo-code looks like this:

1. Perform pre-check to ensure all tooling is installed and obtain necessary information about each tool’s version
2. Check out a specific version of the artifact
3. Deploy code to a target database

The following is an example of the Jenkinsfile to deploy a Liquibase change:

#!/usr/bin/env groovy
// Deploy declarative pipeline
//
pipeline {
  agent {
	node {
	  label 'datical'
	  customWorkspace "/var/lib/jenkins/workspace/LB_mongo/2.Deploy-${BUILD_NUMBER}/"
	}
  }

  environment {
	TARGET_DB="${params.TARGET_DB}"
	ARTIFACT_VERSION="${params.ARTIFACT_VERSION}"
	PATH="$PATH:/opt/liquibase/lb_4.00"
	PROJ_DIR="LB_mongo"
  }

  stages {
	 stage ('Precheck') {
		steps {
		   sh '''
		      ls -alh
		      pwd
		      whoami
		      liquibase --version
		   '''
		} // steps
	} // stage 'precheck'

	stage('Retrieve Artifact') {
	  steps {
	   // download artifact from Artifactory
	   script {
			def server = Artifactory.server 'ArtifactoryServer'
			def downloadSpec = """
			{
			 "files": [
			   {
				"target": "${PROJ_DDB}/",
				"pattern": "${REPOSITORY_BASE}/${BRANCH}/database/${ARTIFACT_VERSION}.zip",
				"explode": "true",
				"flat" : "false"
				}
			   ]
			  }
			  """
			 server.download(downloadSpec)
           }
		} // steps for Artifact
	} // stage artifact

	stage('Status Check') {
	  steps {
		  sh '''
		     set +x
		     if [ ${TARGET_DB} == proddb ]
		     then
		        cd ${PROJ_DIR}
		        echo "Checking if changes have been deployed to Test"
				if liquibase --url=mongodb://localhost:27017/testdb   \
							 --username=${USERNAME}         \
						     --password=${PASSWORD}         \
								status | grep -q "is up to date"; then
					echo "Changes have been applied"
				else
					echo "=========== FAILURE! ================="
					echo "Changes have not been applied to test"
					echo "All changes must be applied to test before Prod"
					echo "======================================"
					exit 1
				fi
			fi
			'''
		} // Steps
	} // Status Check

	stage('Deploy SQL') {
	  steps {
		   sh '''
		       #{ set +x; } 2>/dev/null
			   echo

		       echo "==== Running Deploy (using Liquibase::update) ===="
		       cd ${PROJ_DIR}
			   liquibase --url=mongodb://localhost:27017/${${ENV}  \
					     --username=${USERNAME}              \
						 --password=${PASSWORD}              \
		                 --log-level=info 		      \
			          update
			'''
		}   // steps ...
	}  // stage 'Deploy SQL'

 }   // stages
 post {
	always {
		// Jenkins Artifacts
		//archiveArtifacts "**/daticaldb.log, **/Reports/**, **/Logs/**, **/Snapshots/**"
		sh '''
			ls -alh
		'''
	  } //always
	}  // post
 }  // pipeline

Step 4: Apply Jenkins API Token in Spinnaker:

# Access Halyard pod
export HAL_POD=$(kubectl -n spinnaker get pod -l app=halyard -oname | cut -d'/' -f 2)
kubectl -n spinnaker exec -it ${HAL_POD} bash

# Halyard command to enable Jenkins
hal config ci jenkins enable

# export environment variables
export BASEURL=http://<jenkinsmaster>.datical.net:8080
export USERNAME=admin
export PASSWORD=<API Token>
hal config ci jenkins master add <name_of_your_jenkins_master> --address $BASEURL --username $USERNAME --password $PASSWORD

# apply changes to Halyard
hal deploy apply

Step 5: In Spinnaker, perform the following:

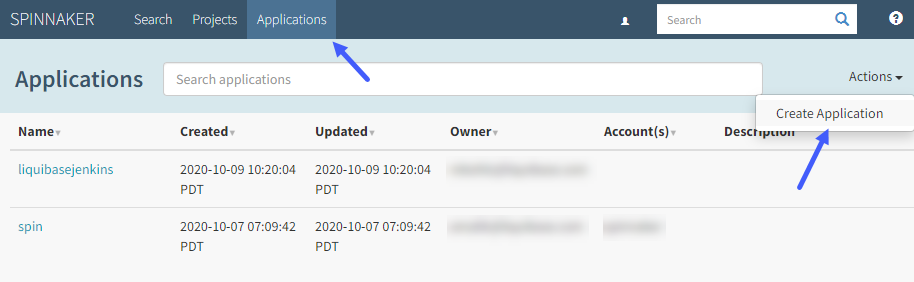

1. Go to Applications, select Actions, and then select Create Application

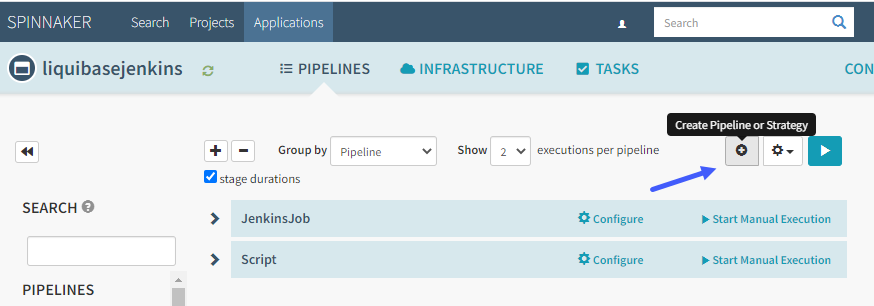

2. Select Create Pipeline or Strategy to create a pipeline in the application

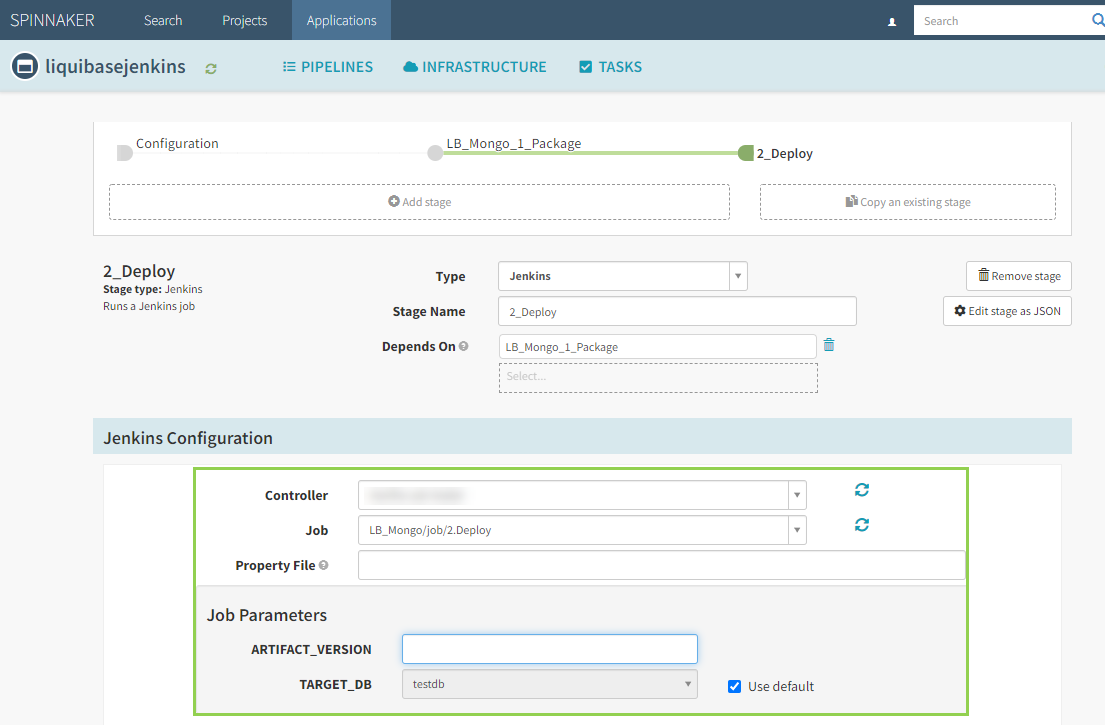

3. Configure a Jenkins pipeline stage by adding the following parameters:

• Controller
• Job
• Property File
• Artifact Version
• Target Database

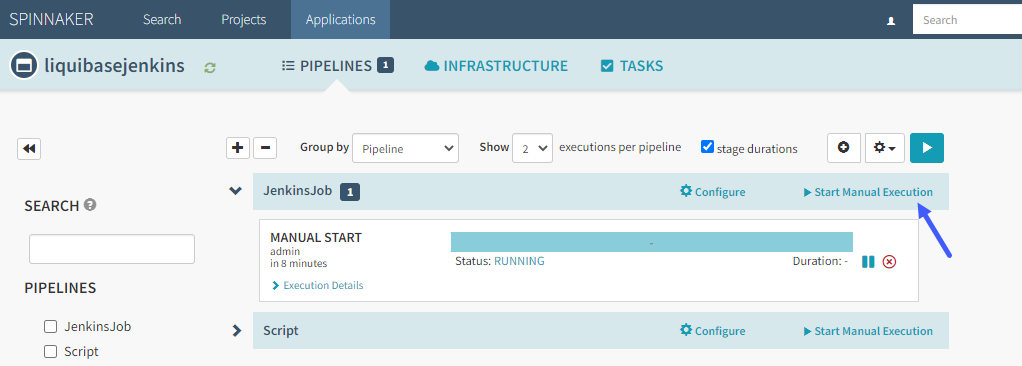

Step 6: Select Start Manual Execution to run the pipeline

You can confirm an execution of the job by going to Jenkins and viewing the console output.

Pipeline as code (JSON)

As all Spinnaker jobs are based on JSON, see JSON for jobs you used if you want to manage your Spinnaker pipeline as a code:

The package pipeline stage:

Input parameters to a Jenkins package job include database credentials (USERNAME and PASSWORD) and the name of the target database (ENV):

"stages": [
	{
	  "continuePipeline": false,
	  "failPipeline": true,
	  "job": "LB/job/1.Package",
	  "master": "jenkins-master",
	  "name": "LB_1_Package",
	  "parameters": {
	      "USERNAME": "lbusername",
	      "PASSWORD": "lbpassword",
		  "ENV": "devdb"
	  },
	  "refId": "1",
	  "requisiteStageRefIds": [],
	  "type": "jenkins"
	}
  ]

The deploy pipeline stage:

Input parameters to a Jenkins deploy job include database credentials (USERNAME and PASSWORD), the name of the target database (ENV), and the artifact version:

"stages": [
	{
	  "continuePipeline": false,
	  "failPipeline": true,
	  "job": "LB/job/1.Package",
	  "master": "jenkins-master",
	  "name": "LB_2_Deploy",
	  "parameters": {
		 "USERNAME": "lbusername",
		 "PASSWORD": "lbpassword",
		 "ENV": "proddb",
		 "ARTIFACT_VERSION": "13"
	   },
	   "refId": "2",
	   "requisiteStageRefIds": [
		 "1"
	   ],
	   "type": "jenkins"
	 }
   ]
