Secure setup using Azure Key Vault

Last updated: September 29, 2026

If Azure DevOps runs your deployments, keep the connection details in a variable group and link that group to the pipeline. One group per environment keeps a pipeline targeting QA from reading production credentials.

1. Create a variable group

Go to Pipelines > Library, open the Variable groups tab, and choose + Variable group.

The Library section of Azure Pipelines, on the Variable groups tab, with the plus Variable group button used to create a new group.

2. Name the group and add the variables

Give the group a name that says which connection it holds, and add a variable for the URL, the username, and the password, named to match the Liquibase environment variables:

LIQUIBASE_COMMAND_URL
LIQUIBASE_COMMAND_USERNAME
LIQUIBASE_COMMAND_PASSWORD

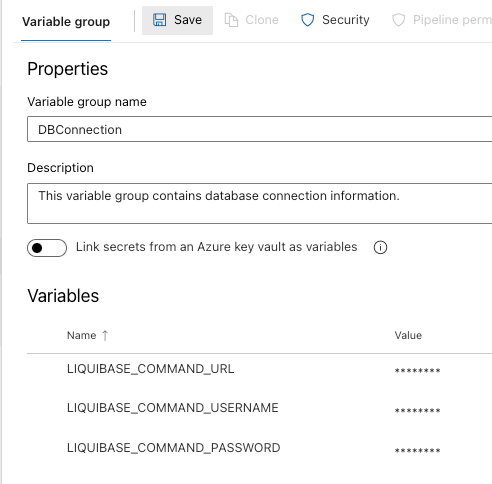

The properties of a variable group named DBConnection, described as containing database connection information, with the option to link secrets from an Azure key vault turned off and all three Liquibase variables stored as masked values.

If your organization already runs Azure Key Vault, turn on Link secrets from an Azure key vault as variables instead of typing values here. The group then holds references and the vault stays the single source of truth, which is what you want when credentials rotate.

3. Lock every value

This is the step to get right. A variable that is not locked is stored and logged in plain text, so an unlocked password appears in build output.

Newly entered variables are unlocked. Only the password row below carries a padlock:

A variable group listing LIQUIBASE_COMMAND_URL, LIQUIBASE_COMMAND_USERNAME, and LIQUIBASE_COMMAND_PASSWORD, with the lock icon shown against the password row only.

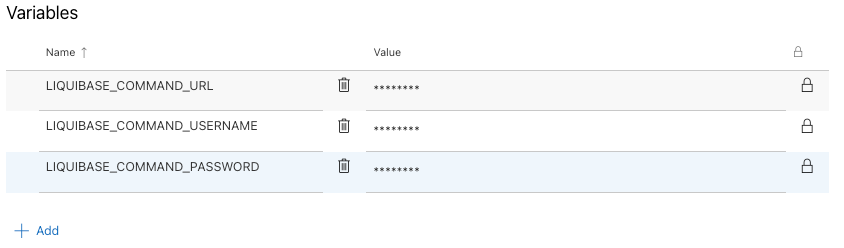

Click the lock on each of the three. All three values then display as asterisks:

The same variable group with all three values locked. Each value now displays as asterisks and carries a closed padlock.

Lock the URL and username as well as the password. The URL names your host and database, which is not something to publish in a build log even though it is not a credential.

4. Link the group and map the variables explicitly

variables:
  - group: DBConnection

steps:
  - script: liquibase update
    env:
      LIQUIBASE_COMMAND_URL: $(LIQUIBASE_COMMAND_URL)
      LIQUIBASE_COMMAND_USERNAME: $(LIQUIBASE_COMMAND_USERNAME)
      LIQUIBASE_COMMAND_PASSWORD: $(LIQUIBASE_COMMAND_PASSWORD)

Secret variables are not passed to scripts automatically. That explicit env: block is required, and this is the mistake that costs people an afternoon: locking a variable is exactly what stops Azure from injecting it, so step 3 and step 4 have to be done together. Omit the mapping and Liquibase receives an empty password and reports an authentication failure, which looks like a credentials problem rather than a pipeline one.

Where to go next

Set up Azure DevOps pipelines for the full pipeline, not just the credentials
Secure setup using environment variables for the variables these map onto
